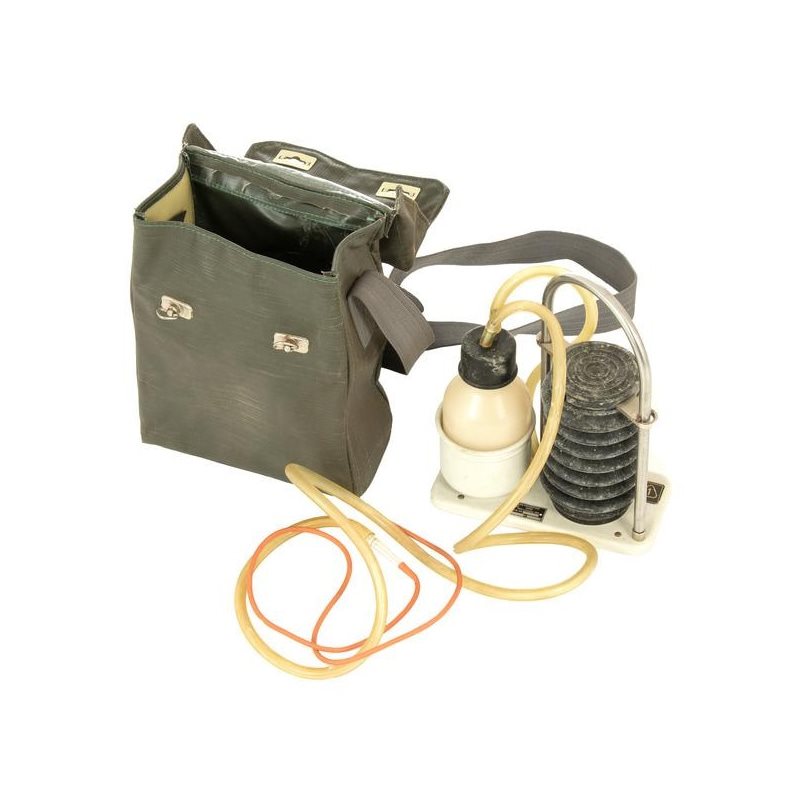

Pedal Aspirator O-69 for Removing Mucus from Respiratory Tract
Treading 0-69 aspirator used to suction secretions, blood, water or vomit from the back of the mouth and upper respiratory tract. It is used wherever there are sources of energy, or getting suction device.
- pressure: min 0.5 kp/cm2
- bottle: 350 cm3
- mass: about 1.5 kg
- Dimensions: 22 cm x 10 cm x 27 cm
- weight: 2.36 kg
- supplied with bags
Treading aspirator consists of moss reinforced rings , which is attached to the upper part and lower part pump. The lower part is attached to the motherboard. The upper portion is fixedly connected to the bridge. Between the lower and the upper part is a compression spring which presses the bridge to stop mounted on the guide rod. In the upper part is a valve placed on the bridge is shaped plate. In the bottom part is placed a valve which is connected to a hose with a bottle. The bottle is fitted with a rubber lid of the other hose is routed to the terminal to which the threading coil.
stepping on a profiled plate is compressed moss. While air escapes from the bellows through the air valve and the valve closes the path to the bottle. When unloading rozpínapružina moss, moss occurs in a vacuum valve which opens and closes the valve. This is achieved in a bottle and moss same vacuum. In the closed tube can be achieved by depressing several vacuum of at least 0.5 kp/cm2.
